The Party Barge pontoons by Sun Tracker have refined styling, features and construction with the same desire from the beginning, to give families a fun way to enjoy the water from lounging, picnicking, exploring, swimming, cannonballing and tubing. These perfect platforms offer multiple lounges/couches with spacious, rotomolded storage compartments below, a QuickLift Bimini top, plus more depending on the pontoon you choose. If you want faster fun, the XP3 models provide three 26' logs with lifting strakes, hydraulic steering and a ski tow pylon base.



Each pontoon is built using plasma and laser cutters and robotic welding to help ensure precise fit and finish throughout, heavy-duty bow U-channel reinforcement behind the deck trim, an reinforced bow structure, and an all-welded, all-aluminum extended motor pod with built-in EPA-compliant fuel system. More features include a port wheelchair-access gate, elevated fence panels for deck drainage and ventilation, and rear boarding platform with four-step folding boarding ladder and grab rails, plus more!



Let the party begin, select your favorite Sun Tracker Party Barge pontoon, and start having fun!

  • Party Barge 18 DLX

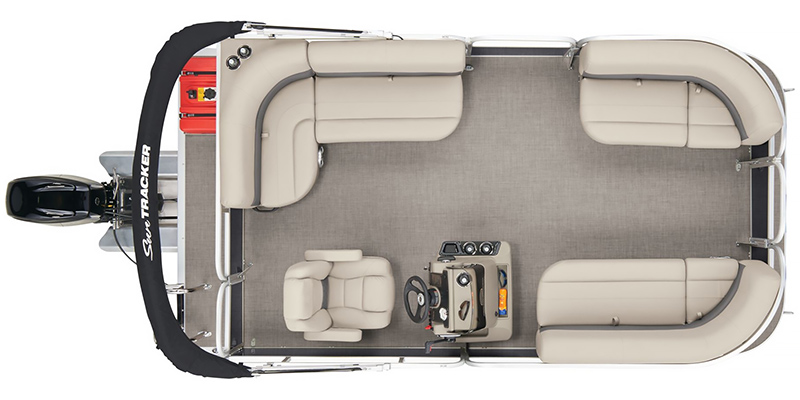

    Party Barge 18 DLX Floorplan Image

    Sun Tracker Party Barge pontoon 18 DLX highlights: Bow Starboard Couch ... more about Party Barge 18 DLX

    Have a question about this floorplan? Contact Us

    Specifications

    Length 20 ft
    Ext Width 8 ft 2 in
    Ext Height 9 ft
    Exterior Color Charcoal, Indigo Blue
    Dry Weight 1449 lbs
    Fuel Type Gasoline
    Weight Capacity 1750 lbs
    Fuel Capacity 32.1 gals
    Hull Type Pontoon
    Passengers 9
    Person Capacity Max 1220
  • Party Barge 20 DLX

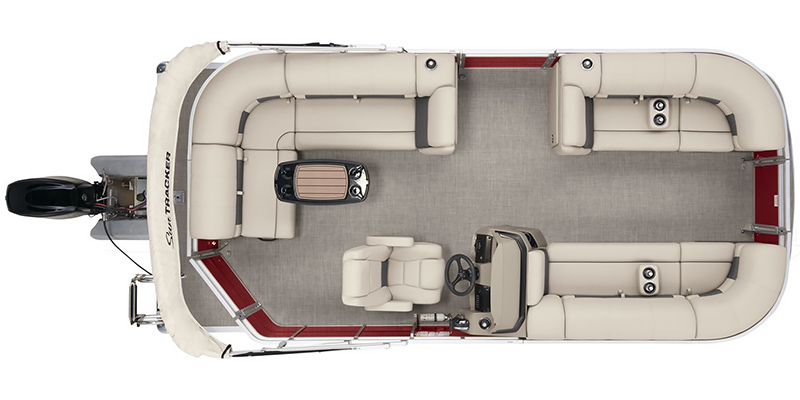

    Party Barge 20 DLX Floorplan Image

    Sun Tracker Party Barge pontoon 20 DLX highlights: STOW MORE Storage System ... more about Party Barge 20 DLX

    Specifications

    Length 21 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 8 ft 9 in
    Exterior Color Charcoal, Indigo Blue
    Dry Weight 2079 lbs
    Fuel Type Gasoline
    Weight Capacity 1900 lbs
    Fuel Capacity 32.1 gals
    Hull Type Pontoon
    Passengers 10
    Person Capacity Max 1370
  • Party Barge 22 DLX

    Party Barge 22 DLX Floorplan Image

    Sun Tracker Party Barge pontoon 22 DLX highlights: STOW MORE Storage System ... more about Party Barge 22 DLX

    Specifications

    Length 24 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 8 ft 10 in
    Exterior Color Black, Caribou
    Dry Weight 2080 lbs
    Fuel Type Gasoline
    Weight Capacity 2200 lbs
    Fuel Capacity 32.1 gals
    Hull Type Pontoon
    Passengers 11
    Person Capacity Max 1500
  • Party Barge 22 RF XP3

    Party Barge 22 RF XP3 Floorplan Image

    Sun Tracker Party Barge pontoon 22 RF XP3 highlights: Rear-Facing Lounge In-Deck ... more about Party Barge 22 RF XP3

    Have a question about this floorplan? Contact Us

    Specifications

    Length 24 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 8 ft 11 in
    Exterior Color Copper Red, Indigo Blue
    Dry Weight 2980 lbs
    Fuel Type Gasoline
    Weight Capacity 2400 lbs
    Fuel Capacity 52 gals
    Hull Type Pontoon
    Passengers 11
    Person Capacity Max 1600
  • Party Barge 22 XP3

    Party Barge 22 XP3 Floorplan Image

    Sun Tracker Party Barge pontoon 22 XP3 highlights: Four Lounges/Couches In-Deck ... more about Party Barge 22 XP3

    Have a question about this floorplan? Contact Us

    Specifications

    Length 24 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 8 ft 11 in
    Exterior Color Copper Red, Indigo Blue
    Dry Weight 2980 lbs
    Fuel Type Gasoline
    Weight Capacity 2400 lbs
    Fuel Capacity 52 gals
    Hull Type Pontoon
    Passengers 11
    Person Capacity Max 1600

Party Barge Features:

Standard Features (2022)



Comfort, Convenience & Peace of Mind

  • 10+LIFE™ Limited Lifetime Warranty
  • NMMA® certified
  • 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights, protective boot & accepts optional drop-down changing curtain (18 DLX)
  • NEW 10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (20 DLX, 22 DLX, 22 XP3, 22 RF XP3)
  • Storage pockets in Bimini top
  • New gate latches & heavy-duty hinges that open inward (18 DLX)
  • NEW aft squared gate (18 DLX)
  • Nylon gate latches & heavy-duty hinges that open inward (20 DLX, 22 DLX, 22 XP3, 22 RF XP3)
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • NEW mooring eye on starboard side for tie off (22 DLX, 22 XP3, 22 RF XP3)
  • NEW four 4.5" (11.43 cm) fold-down mooring cleats (18 DLX, 20 DLX, 22 XP3, 22 RF XP3)
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn

Console

  • Sport steering wheel (18 DLX)
  • Deluxe soft-touch sport steering wheel (20 DLX, 22 DLX, 22 XP3, 22 RF XP3)
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Tinted windshield (18 DLX)
  • Tilt hydraulic steering (22 XP3, 22 RF XP3)
  • Wraparound sport shroud & tinted windscreen (20 DLX)
  • Wraparound sport shroud & tinted, removable windscreen (22 DLX, 22 XP3, 22 RF XP3)
  • Below-console cooler/storage space (18 DLX, 20 DLX)
  • Below-console cooler/storage space w/door & integrated pouch (22 DLX, 22 XP3, 22 RF XP3)
  • Small items tray
  • Drink holders
  • Built-in footrest w/non-skid pad
  • NEW AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 speakers integrated into Bimini top
  • NEW USB/3.5 mm auxiliary input ports on console for direct stereo connection (20 DLX, 22 DLX, 22 XP3, 22 RF XP3)
  • Illuminated tachometer, trim & fuel gauges (18 DLX, 20 DLX)
  • Tachometer, trim meter/speedometer & fuel & hour gauges (22 DLX, 22 XP3, 22 RF XP3)
  • Lighted rocker switches (18 DLX, 20 DLX, 22 DLX)
  • Lighted rocker switches w/bilge switch (22 XP3, 22 RF XP3)
  • Ergonomically positioned Mercury® binnacle control box w/trim
  • 12V outlet
  • Darker console color

Interior

  • NEW layout (18 DLX, 22 DLX, 22 XP3)
  • NEW larger playpen (18 DLX)
  • Bow port couch w/underseat storage & NEW armrest w/drink holder (18 DLX)
  • NEW larger bow starboard couch w/underseat storage (18 DLX)
  • The patented STOW MORE™ system features an added compartment in the seat back for increased storage (20 DLX, 22 DLX, 22 XP3, 22 RF XP3)
  • Bow port couch w/STOW MORE™ system, underseat storage & NEW armrest w/drink holder (20 DLX, 22 DLX, 22 XP3, 22 RF XP3)
  • Bow starboard couch w/STOW MORE™ system & underseat storage (20 DLX, 22 XP3, 22 RF XP3)
  • 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log (22 XP3, 22 RF XP3)
  • Aft L-lounge w/STOW MORE™ system, underseat storage, lockable storage compartment & NEW arm (20 DLX)
  • Aft L-lounge w/underseat storage (18 DLX)
  • NEW high-back swiveling port bucket seat, reclining & w/self-leveling arms (22 DLX, 22 XP3)
  • Midship port L-lounge w/STOW MORE™ system & underseat storage (22 RF XP3)
  • High-back swiveling helm bucket seat, reclining & w/self-leveling arms (20 DLX, 22 DLX, 22 XP3, 22 XP3)
  • Aft port couch w/STOW MORE™ system, underseat storage & NEW arm (22 DLX, 22 XP3, 22 RF XP3)
  • Aft starboard couch w/STOW MORE™ system, lockable underseat storage & NEW arm (22 DLX, 22 XP3)
  • Adjustable helm bucket seat w/swivel (18 DLX)
  • NEW aft port rear-facing double lounge w/underseat storage & removable armrest (18 DLX)
  • Aft port rear-facing double lounge w/STOW MORE™ system, underseat storage & pop-up changing room (22 RF XP3)
  • NEW midship port side drink holder (22 DLX, 22 XP3)
  • Full-width aft swim deck
  • Receptacle for optional ski tow pylon (22 XP3, 22 RF XP3)
  • Woven 16-oz. (.45 kg) marine-grade flooring throughout
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • 2 movable drink holders/armrests (20 DLX, 22 DLX, 22 XP3)
  • Movable drink holder/armrest (18 DLX)
  • 2 movable drink holders/armrests (22 XP3, 22 RF XP3)
  • Removable table w/padded insert, 4 molded-in drink holders & 1 pedestal base location (20 DLX)
  • Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations (22 DLX, 22 XP3, 22 RF XP3)
  • Port wheelchair-access gate (18 DLX, 20 DLX, 22 DLX)
  • 4-step folding boarding ladder w/grab rails (18 DLX, 20 DLX, 22 DLX)

Performance

  • XP3 performance package – strakes on inboard side of outer logs & both sides of center tube (22 XP3, 22 RF XP3)
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller

Construction & Exterior

  • Color: Charcoal or Indigo Blue fencing (18 DLX, 20 DLX)
  • Color: Black or Caribou fencing (22 DLX)
  • Color: Copper Red or Indigo Blue fencing (22 XP3, 22 RF XP3)
  • Exterior styling w/XP3 graphics package (22 XP3, 22 RF XP3)
  • Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
  • Rotomolded couches & backs for furniture w/Diamante Pepper accent
  • Heavy-duty bow U-channel reinforcement behind deck trim
  • 24" (60.96 cm) diameter high-buoyancy multi-chambered pontoons w/internal bracing for additional strength (18 DLX, 20 DLX, 22 DLX)
  • Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength (22 XP3, 22 RF XP3)
  • 1-piece full-length M-bracket deck supports (20 DLX, 22 DLX, 22 XP3)
  • Protective exoskeleton rail & panel system for durability & a quieter ride (20 DLX, 22 DLX, 22 RF XP3)
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/ decorative styling
  • Reinforced bow structure
  • Factory-installed underpinning (under-deck shielding) for improved performance (22 XP3, 22 RF XP3)
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • NEW redesigned motor pod w/improved performance (18 DLX, 20 DLX, 22 DLX)
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Port wheelchair-access gate
  • Rear boarding platform w/4-step folding boarding ladder & grab rails

Electrical

  • 500 GPH (1892.71 LPH) Ultima auto bilge pump (22 XP3, 22 RF XP3)

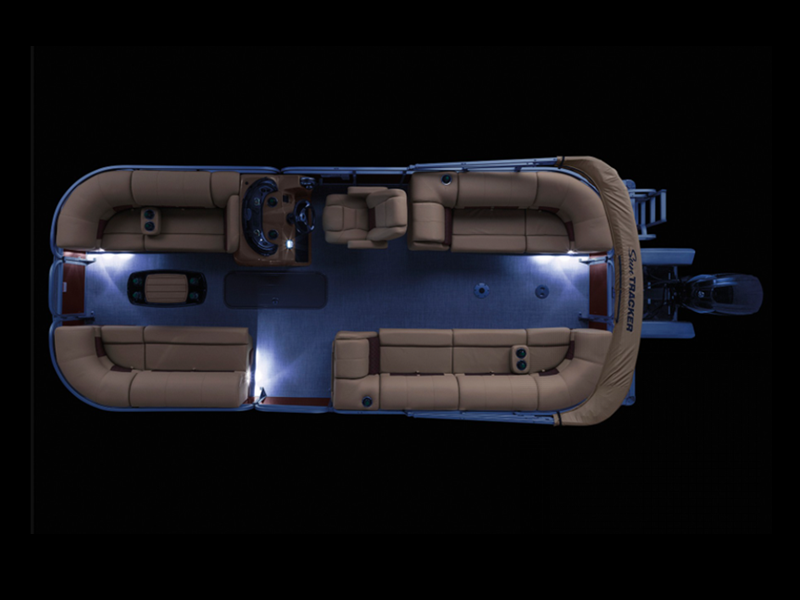

  • Interior courtesy lighting
  • NEW battery disconnect switch (22 XP3, 22 RF XP3)
  • Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors

Motor Options

Mercury FourStroke

  • 9.9 ELPT FourStroke Command Thrust ProKicker (18 DLX, 20 DLX, 22 DLX)
  • 20 ELPT FourStroke (18 DLX, 20 DLX)
  • 25 ELPT FourStroke (18 DLX, 22 DLX)
  • 60 ELPT FourStroke Command Thrust (18 DLX, 20 DLX)
  • 75 ELPT FourStroke (18 DLX)
  • 90 ELPT FourStroke Command Thrust (20 DLX, 22 DLX)
  • 115 ELPT FourStroke Command Thrust 22 DLX)
  • 150 L FourStroke (22 DLX, 22 XP3, 22 RF XP3)
  • 200 L FourStroke (22 XP3, 22 RF XP3)

Mercury Pro XS

  • 115 ELPT Pro XS® FourStroke Command Thrust (22 DLX)

Options

Functional

  • Ski tower (plus dealer installation) (20 DLX, 22 DLX)
  • Underpinning kit (plus dealer installation) (18 DLX, 20 DLX, 22 DLX)

Cover

  • Snapless mooring cover - Black

Trailer

  • Tandem-axle trailer w/brakes on both axles (additional freight charge applies for standalone trailer purchase) (20 DLX, 22 DLX, 22 XP3, 22 RF XP3)
  • Single-axle trailer (additional freight charge applies for standalone trailer purchase) (18 DLX)
  • Single-axle trailer w/brakes (additional freight charge applies for standalone trailer purchase) (18 DLX)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
